Mini Excavators LJ08 0.8 tons
- Product description
-
Performance Parameter
Horsepower
12HP
Bucket capacity
Bucket capacity 0.025m³
Bucket width
300mm
Engine type
Changchai 192
Power 7-7.5KW Optional engine
KOOP Euro5
Briggs & Stratton
Working weight
800 kg
Maximum digging force
7.5KN
Pump type
Single gear pump
Set the working pressure
14Mpa
Swing speed
12 rpm
Travel speed
2.2Km/h
Climbing capacity
30°
Ground specific pressure
19Kpa
Working Range
Maximum digging distance
2450mm
Maximum digging depth
1300mm
Maximum digging height
2350mm
Maximum dump clearance
1600mm
Minimum swing radius
1100mm
Maximum ground clearance of bulldozer
120mm
Maximum support depth of bulldozer
200mm
Outline Dimension
Total width
720-780mm
Overall height
1300mm
Overall length
2430mm
Minimum ground clearance
80mm
Track ground length
1140mm
Track width
150mm
Production capacity

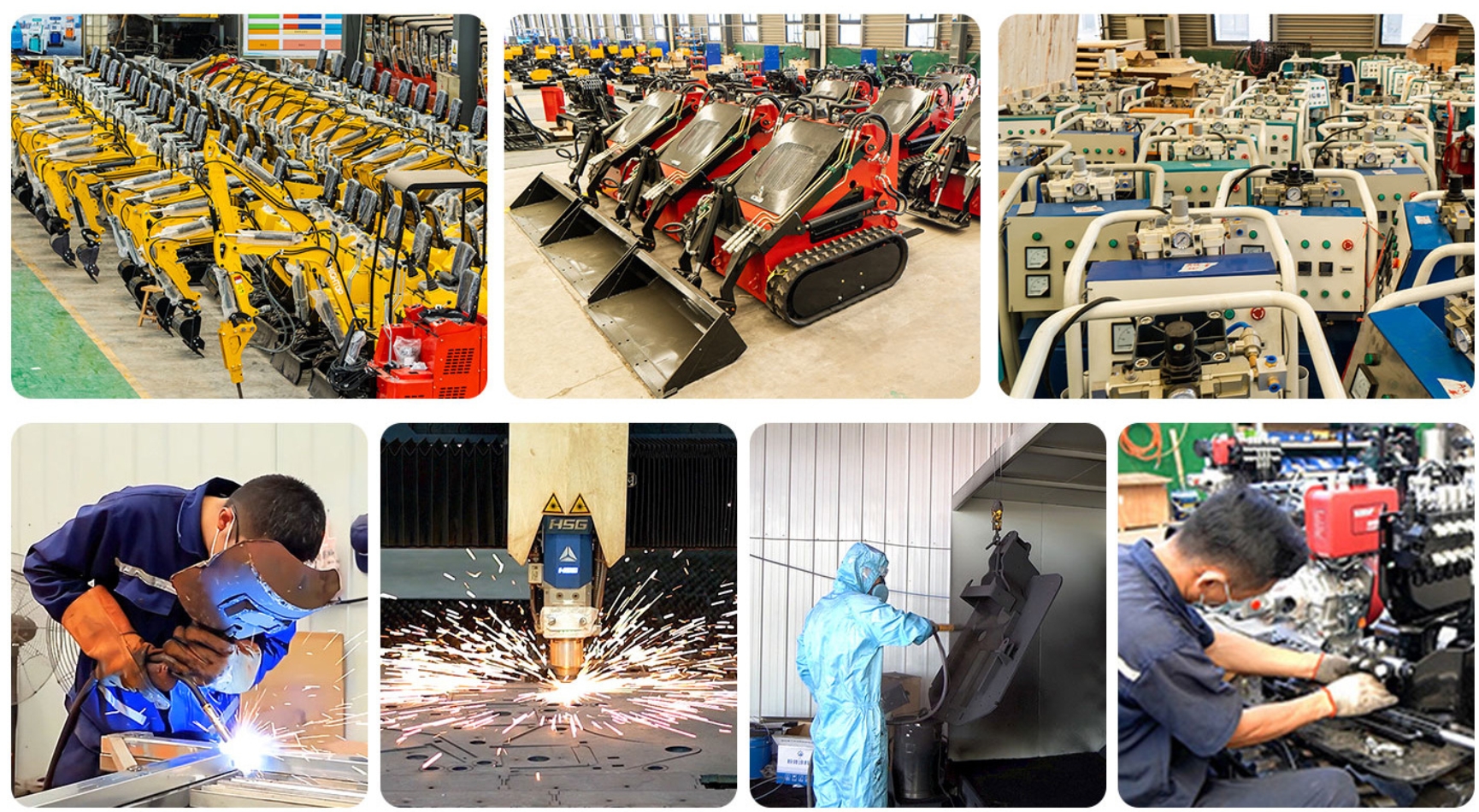

The company has a modern production workshop and advanced manufacturing equipment, which provides a reliable guarantee of product quality and production efficiency. We manage production in strict accordance with the ISO9001 quality management system to ensure that each link meets quality standards. At the same time, we also have advanced testing equipment and strict quality control processes to ensure product standardization.
Research and development capabilities:
The company has established a good reputation in the field of scientific research, has a high-quality and professional R&D team, and holds a number of invention patents. Team members possess rich industry experience and professional knowledge and are committed to technological innovation and modernization of excavators and cylindrical equipment.
Keyword:
Mini Excavators LJ08 0.8 tons
FAQ
The content of the excavator is as follows
Question 1: The warranty period of the excavator
Answer: One year or 2,000 hours
Question 2: Can replacement parts be found in the customer's country?
Answer: Yes. (We provide some small accessories for free.)
Question 3: Can customized services be provided?
Answer: Yes. (We can offer color customization and logo customization.)
Question 4: What kind of engine is adopted?
Answer: Chinese engines or imported engines (as per customer requirements)
Engines are classified into single-cylinder engines, two-cylinder engines and three-cylinder engines
Question 5: What are the modes of transportation?
Answer: Ocean transportation, railway transportation and road transportation
For ocean transportation, we are not responsible for customs clearance and tariffs. We only handle delivering the goods to ports (such as the Port of St. Petersburg and the Port of Vladivostok).
For railway and road transportation, we are responsible for customs clearance and tariffs. If the customer needs it, it can be delivered directly to the door
The contents of the hydraulic cylinder are as follows
Question 6: The materials that need to be provided by the customer before making a quotation
Answer: Hydraulic cylinder number/parameter photo/Hydraulic cylinder floor plan (It is best to provide two sets of materials)
3D design drawings of hydraulic cylinders can be made (only design drawings are required, but an additional charge applies. If you place an order for purchase, it can be free of charge).
Question 7: Can customized services be provided?
Answer: Yes. (We can offer color customization and logo customization.)
Question 8:
Payment Method:
Question 9: Transaction process
We offer quotations. The customer pays a 30% advance payment and the factory arranges for production. After the factory production is completed, we will provide a video for the customer to confirm the status of the goods. Once confirmed to be correct, the customer will pay 70% of the balance. After the factory receives the payment for goods, we will deliver the goods.
Question 10: Payment Account
Company payment: If payment is made through a company account, we can provide a company account (VTB account).
If it is an individual payment, we can provide a personal account (only accepting rubles).
The time for the funds to arrive: generally, it is 1 to 3 days
